China’s Largest Online Retailer
Pharmaceuticals & Health Products Warehouse
11,000
storage locations within 1,700㎡
99.9%
Picking Accuracy
6.5 cases/㎡
Storage Density
1.8 times
Storage Capacity Increased
China’s Largest Online Retailer
The warehouse covers health products, temperature-division storage, goods batch management, order and product batch number binding, and first-in-first-out management strategy. Orders are scheduled in hourly waves. According to retailer's business type, warehousing processes and equipment need to be flexible, HAI ROBOTICS innovation successfully solves these pain points by providing flexible services.
--Warehouse operations include multiple business types of orders and frequent promotions
--Low storage density in manual picking area (2.4m high shelves)
--High pressure for B2B delivery and replenishment
--Order picking, goods cannot be picked together in batches, personnel picking path is long, and picking is difficult

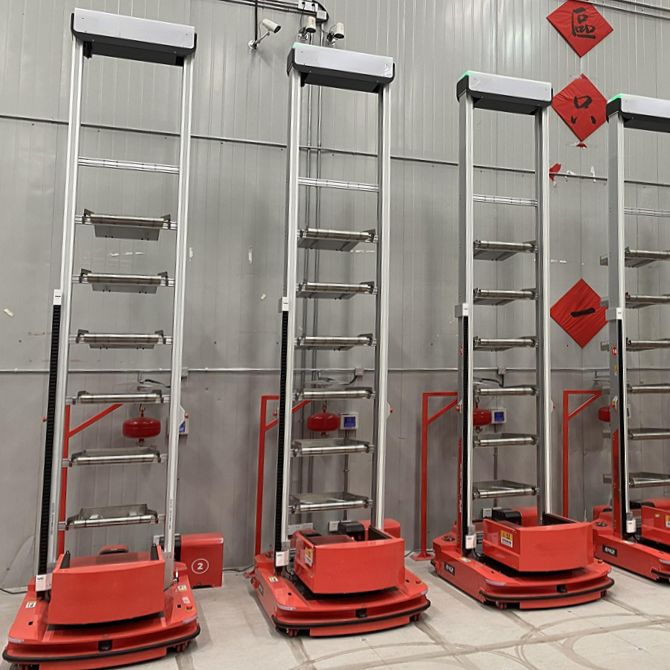

--Robot quantity & type: 18 units, A42
--Charging stations：6
--Workstation type & quantity: 5 sets HAIPORT unloader + 5 sets outbound workstation + 3 sets inbound workstation + 1 set on-conveyor workstation
--Shelving height: 4,800mm
--Storage unit type/size: Tote 600mm(L)×400mm (W) ×300mm (H)
--Warehouse area: 1,700㎡, storage area: 1650㎡, achieving 11,000 storage locations
--Multi business model inventory
--Higher utilization rate of shared space: 4.8m shelf is adopted, increasing storage capacity 1.8 times compared to previous set up that used 2.4m high shelves
--Increased B2B order picking and batch picking, the robot automated full container inbound process, and the replenishment efficiency was greatly improved
--Significantly increased the picking efficiency of the total picking of B2B orders
