Telescopic Grappling-hook ACR
HaiPick A42T-E2
Our Second-Gen A42T Automated Case-handling Mobile Robot (ACR) is the world's first telescopic ACR with a Chain-Pick system powered by a solo hook. The grappling hook's Chain-Pick system can haul up to three interlocking totes at once from racks and carry up to eight in its multi-storage tray tower.
Our Grappling-Hook ACR revolutionizes storage density with Chain-Pick technology, reducing the gap between totes by ~60% to 40mm. The Chain-Pick technology eliminates space between the front and back of totes to 0.0mm, allowing facilities to maximize storage space with 3-deep tote racks.
With a maximum picking height of 12m and Chain Pick technology, our Telescopic Grappling Hook ACR optimizes storage space by 89%.
Equipped with autonomous navigation, obstacle avoidance, and automatic charging capabilities, this user-friendly ACR ensures worker safety in the facility.
Our Second-Gen A42T Automated Case-handling Mobile Robot (ACR) is the world's first telescopic ACR with a Chain-Pick system powered by a solo hook. The grappling hook's Chain-Pick system can haul up to three interlocking totes at once from racks and carry up to eight in its multi-storage tray tower.
Our Grappling-Hook ACR revolutionizes storage density with Chain-Pick technology, reducing the gap between totes by ~60% to 40mm. The Chain-Pick technology eliminates space between the front and back of totes to 0.0mm, allowing facilities to maximize storage space with 3-deep tote racks.
With a maximum picking height of 12m and Chain Pick technology, our Telescopic Grappling Hook ACR optimizes storage space by 89%.
Equipped with autonomous navigation, obstacle avoidance, and automatic charging capabilities, this user-friendly ACR ensures worker safety in the facility.

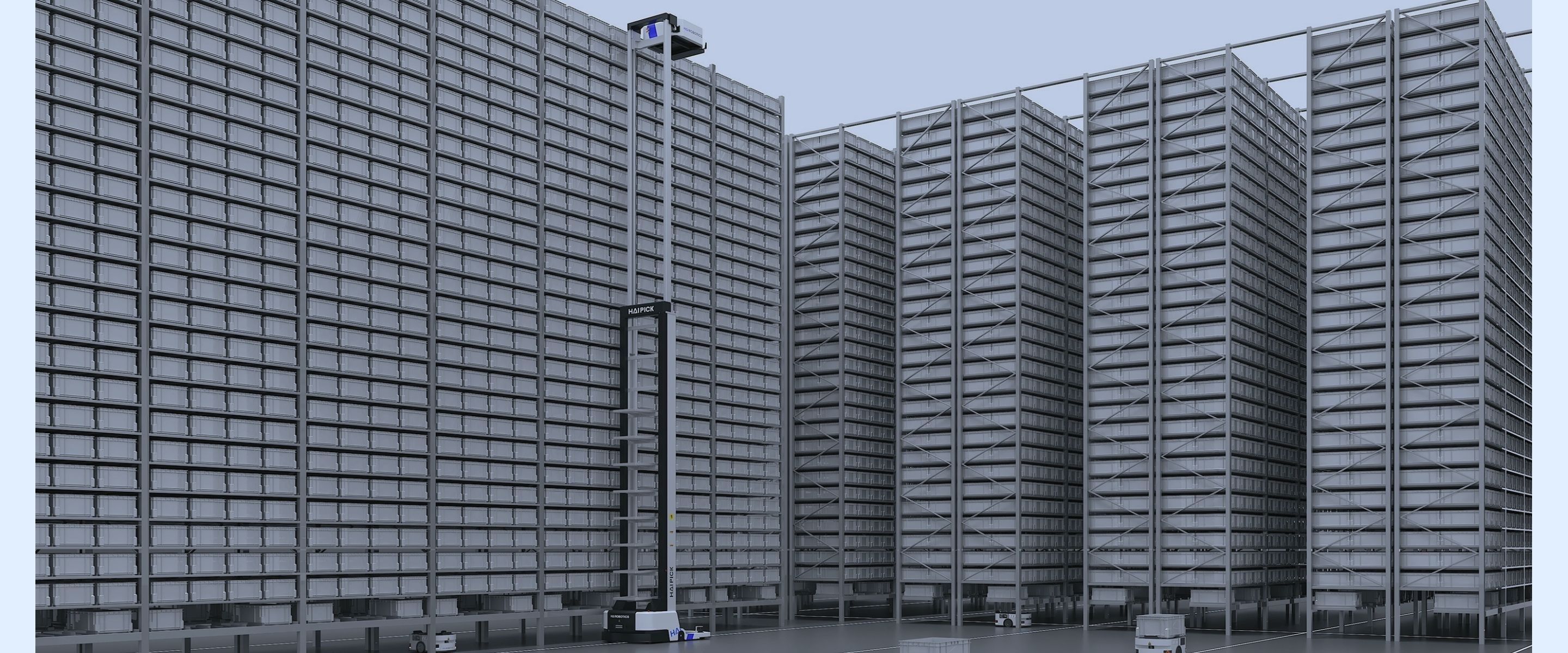

![HaiPick A42T-E2 warehouse storage robots](/sites/default/files/2024-06/a42t-e2_2880x1200-_2-1_0.jpg)
70% Improved picking efficiency
-
Capable of transporting 63 totes per hour.
-
The requirement of scanning tote codes during the picking and placing process has been eliminated.
Rapid lifting speed
-
Lifts its fork at a speed of up to 0.93 m/s.
-
2.7s ascending and descending tote handling speed.
Flexible application
-
Can travel freely across 5 m/6 m high doors with the help of telescopic uprights.
-
Picks and stores 30kg (66.1 lbs) payloads up to 12m (39 feet) high.
Safety and Secure
-
Emergency stop buttons in four directions.
-
LiDAR remote scanning for obstacle avoidance.
-
Storage and Hooking detection and anti-fall bin detection device.
-
CE/NRTL certified.
-
Audible and visual alarms and voice alerts for real-time robot status.
Battery
-
LFP 62 Lithium battery.
-
39 minutes to fast charge.
-
Full battery charge life ≥6.6h.
Product Features
Hai Robotics’ ACR-centered systems
![fashion warehouse automation](/sites/default/files/2022-12/fashion-apparel-small.jpg)
Increase storage density by 80-400% and space utilization rate.
![e-commerce warehouse automation](/sites/default/files/2022-12/e-commerce-small.jpg)
Easy to expand, transform, and relocate, quick response to market demands, and business changes.
![3PL warehouse automation](/sites/default/files/2022-12/3pl.jpg)
Increase operational efficiency by 3-4 times per worker, working accuracy 99.99%.
![retail logistics solutions](/sites/default/files/2024-02/retail_864x540.jpg)
Support 2B, 2C, bonded warehouse, and other businesses to meet diverse needs.
![healthcare](/sites/default/files/2022-12/healthcare-small.jpg)
Optimize operation procedures, improve storage efficiency, and shorten investment return cycles.
![electronics](/sites/default/files/2022-12/electronics-small.jpg)
Flexibly respond to customized production requirements and facilitate efficient manufacturing.
![automotive](/sites/default/files/2022-12/automotive-small.jpg)
Reduce operating costs and meet diverse production and industry scenarios.
