Telescopic Lift ACR

HAIPICK A42T

The HAIPICK A42T Telescopic ACR is the world's first ACR that can pick and store plastic totes and carton boxes at a dizzying height of up to 10m (32.8 feet). Increase your warehouse storage density even further with the A42T.

  • Maximum picking height 10m (32.8 feet):

Improve storage density by up to an additional 100% compared to the regular A42.

  • World's first telescopic ACR:

Utilize your warehouse space even more efficiently by picking and storing 30kg (66.1 lbs) payloads up to 10m (32.8 feet) high.

  • High efficiency:

The A42T has multiple storage trays to carry up to nine payloads simultaneously, which greatly improves picking efficiency.

  • Flexible payload dimensions:

The robot supports separate and mixed picking of plastic totes and carton boxes.

  • CE/NRTL certificate:

We are committed to empowering every customer in the world and will provide a range of certifications to ensure that our products and services reach every corner of the world.

Support docking to different equipments:

Shelves, latent AGVs, robotic arms, multi-function workstations, and other equipments

haipick a42t robot automation
telescopic lift acr
haipick a42t robot
telescopic lift acr back
haipick a42t robot back

The HAIPICK A42T Telescopic ACR is the world's first ACR that can pick and store plastic totes and carton boxes at a dizzying height of up to 10m (32.8 feet). Increase your warehouse storage density even further with the A42T.

  • Maximum picking height 10m (32.8 feet):

Improve storage density by up to an additional 100% compared to the regular A42.

  • World's first telescopic ACR:

Utilize your warehouse space even more efficiently by picking and storing 30kg (66.1 lbs) payloads up to 10m (32.8 feet) high.

  • High efficiency:

The A42T has multiple storage trays to carry up to nine payloads simultaneously, which greatly improves picking efficiency.

  • Flexible payload dimensions:

The robot supports separate and mixed picking of plastic totes and carton boxes.

  • CE/NRTL certificate:

We are committed to empowering every customer in the world and will provide a range of certifications to ensure that our products and services reach every corner of the world.

Support docking to different equipments:

Shelves, latent AGVs, robotic arms, multi-function workstations, and other equipments

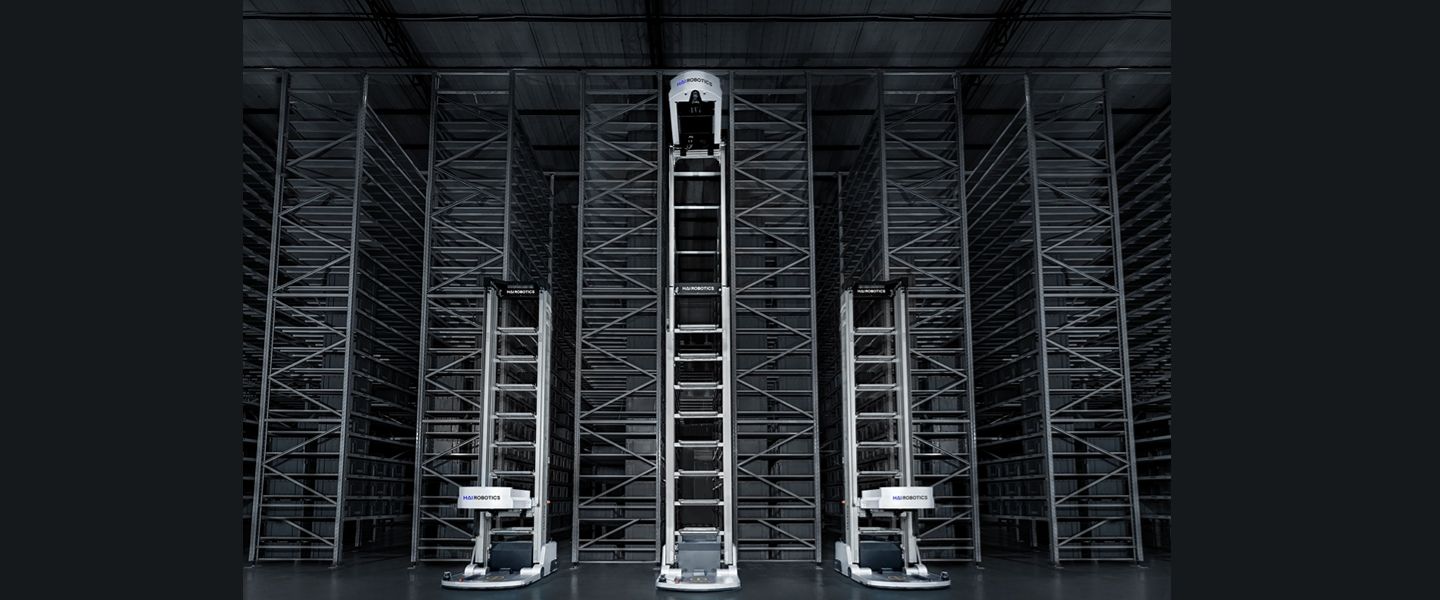

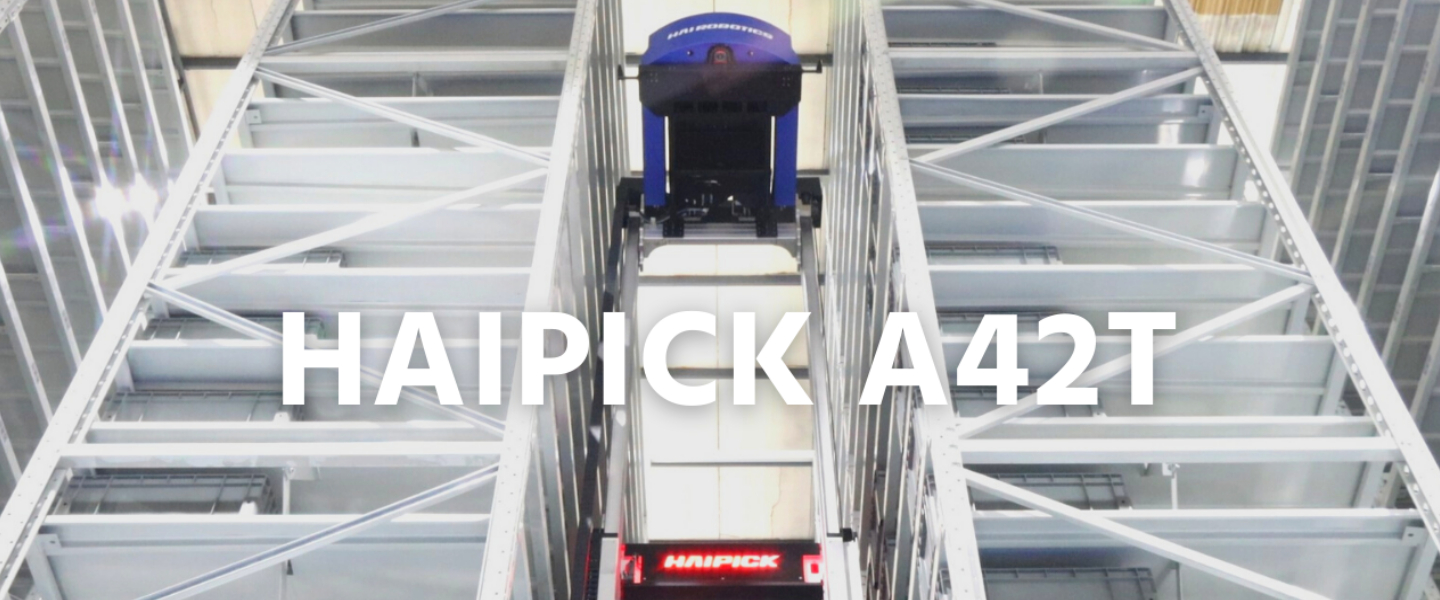

haipick A42t video

Product Features

01

Autonomous & intelligent functions

Autonomous picking, handling, navigation, charging

02

Ultra-wide picking range

Covers a broader storage space range

03

Fast & stable

Stable straight move speed and high stop accuracy in travel direction

04

Multi-case handling

Each robot can store up to multiple cases at the same time

05

Wireless communication

Supports Wi-Fi to ensure smooth operation

06

Multiple safety protection

Obstacle detection, active obstacle avoidance, anti-collision alarm, and emergency stop

07

Mixed picking

Compatible with cartons/totes, multi-size cases

08

Flexible & customizable

Supports different customization requirements including height and color

09

The ideal solution

Tailored specially to meet different application scenarios to deliver the best solution

Specifications
*Multiple models are supported, please contact us for customization
A42T-L
A42T-X
  • A42T-L
  • A42T-X
Compatible Case Parameters
  • Case Dimension Scope (mm/inch)
  • L(400~650) × W(300~500) mm ; L(15.7~25.5) × W(11.8~19.6) in
  • L(650~850) × W(400~650) mm ; L(25.5~33.4) × W(15.7~25.5) in
  • Case Height Scope (mm/inch) [Multi heights supported]
  • 115-330 (4.5~12.9 in)
  • 115-330 (4.5~12.9 in)
  • Case Weight (kg/pound)
  • ≤30 (66 lbs)
  • ≤30 (66 lbs)
Robotics Parameters
  • Robot Dimensions (mm/inch)
  • 8m: L1850 × W1030 × 4890 (72.8 × 40.5 × 192.5 in) ; 10m: L1850 × W1030 × 5730 (72.8 × 40.5 × 192.5 in)
  • 8m: L2220 × W1250 × 4890 (87.4 × 49.2 × 192.5 in) ; 10m: L1800 × W1030 × 5730 (87.4 × 49.2 × 192.5 in)
  • Picking Height Range (mm/inch)
  • 8m: 8000mm (315 in) ; 10m: 10000mm (393.7 in)
  • 8m: 8000mm (315 in) ; 10m: 10000mm (393.7 in)
  • Mechanical Rotation Diameter (mm/inch)
  • 1850 (72.8 in)
  • 2240 (88.1 in)
  • Robot Net Weight (kg/pound)
  • 8m:900 (1984 lbs) ; 10m:950 (2094 lbs)
  • 8m:1050 (2314 lbs) ; 10m:1100 (2425 lbs)
  • Robot Max Load (kg/pound)
  • ≤270 (595 lbs)
  • ≤270 (595 lbs)
  • Number of Back Trays
  • 8
  • 8
  • Certification
  • CE interlock version / CE standard safety version
  • CE interlock version / CE standard safety version
Main Deployment Parameters
  • Aisle Width (mm/inch)
  • 8m:1150mm (45.2 in) ; 10m:1160mm (45.6 in)
  • 8m:1370 (53.9 in) ; 10m:1380 (54.3 in)
  • Working Environment Temperature
  • 0~45°C
  • 0~45°C
  • Ground Flatness (mm/inch)/2.25㎡ (8,060 in2)
  • ±3 (0.1 in)
  • ±3 (0.1 in)
Performance
  • Max Straight Move Speed (m/feet)/s
  • 1.5m (4.9 feet)
  • 1.5m (4.9 feet)
  • Stop Accuracy in Travel Direction (mm/inch)
  • ±10 (0.39 in)
  • ±10 (0.39 in)
Battery Specifications
  • Full Charging Time (20%~100%) (h)
  • ≤1.4
  • ≤1.4
  • Fast Charging Time (30%~80%) (min)
  • ≤32
  • ≤32
  • Full Charge Endurance (100%~20%) (h)
  • ≥6.5
  • ≥6.5
  • Fast Charge Endurance (80%~30%) (h)
  • ≥4
  • ≥4
Safety Functions
  • Communication Encryption
  • Zoned Obstacle Avoidance
  • Zone Deceleration
  • Emergency Stop Button
  • Anti-collision Mechanism
  • Sound & Light Alarm
  • Motor Protection
  • Battery Protection

Optional Features

Optional Features

Optional Features

3D Visual Recognition

Support carton picking, compatible with multi-size cases

Adapt to the situation that some containers cannot be identified by the code

Flexible Width Fork Technology

The size of the cases can be automatically recognized for flexible pick and place

Reasonably utilizing case spacing to increase the overall storage density by more than 30%

Our Solutions
fashion warehouse automation

Increase storage density by 80-400% and space utilization rate.

e-commerce industry solution

Easy to expand, transform, and relocate, quick response to market demands, and business changes.

3PL warehouse automation

Increase operational efficiency by 3-4 times per worker, working accuracy 99.99%.

retail and supermarket industry solution

Support 2B, 2C, bonded warehouse, and other businesses to meet diverse needs.

healthcare industry solution

Optimize operation procedures, improve storage efficiency, and shorten investment return cycles.

Electronics industry solution

Flexibly respond to customized production requirements and facilitate efficient manufacturing.

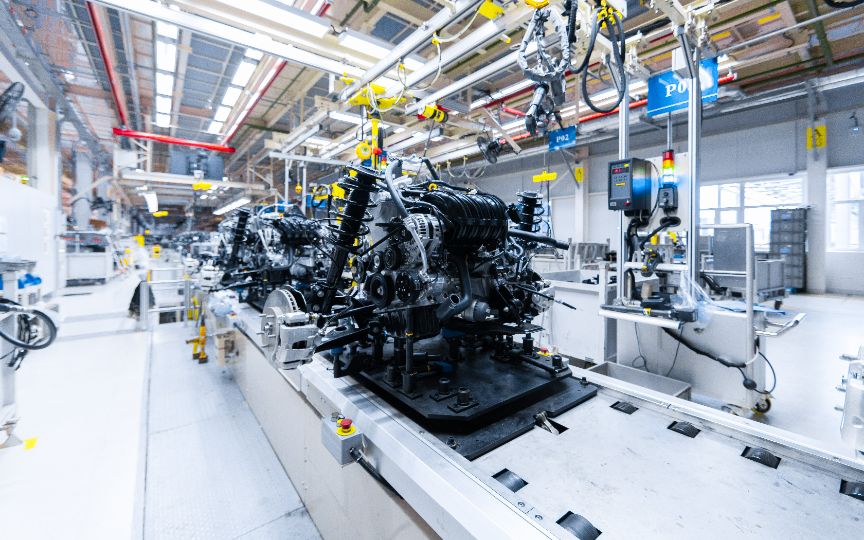

automotive solution
